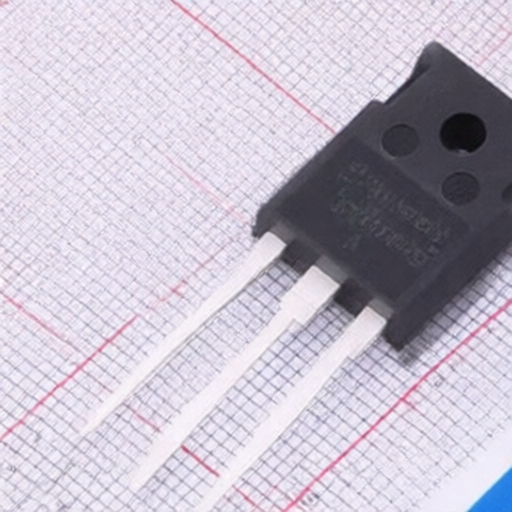

FUXINSEMI C3M0016120D
Manufacturer:
FUXINSEMI
Asian Brands
Mfr. Part #:
C3M0016120D
Package:
TO-247-3
Customer #:
Key Attributes:
Silicon Carbide Power MOSFET N-Channel Enhancement Mode
Description:
1.2kV 115A 22.3mΩ 3.6V 556W TO-247-3 Single FETs, MOSFETs RoHS
Datasheet:
FUXINSEMI C3M0016120D
Products Specifications
Manufacturer:
Package:
TO-247-3
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
115A
Operating Temperature -:
-40℃~+175℃
RDS(on):
22.3mΩ
Gate Threshold Voltage (Vgs(th)):
3.6V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
13pF
Output Capacitance(Coss):
230pF
Pd - Power Dissipation:
556W
Input Capacitance(Ciss):
6.085nF
Gate Charge(Qg):
207nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
FUXINSEMI
868 Products
Fu
xinSemi
Semiconductor (Shenzhen) Co., Ltd.
(hereinafter referred to as "FuxinSemi") is a high-tech enterprise integrating R&D, production and sales. It has the industry's top R&D capabilities and advanced fully automated production lines for chip production, packaging and testing. The company has passed ISO and IATF 16949 quality management system certifications, and its products have passed UL, ROHS, REACH, HF and other tests. The main products include thyristors, MOSFETS, silicon carbide Schottky, diodes, transistors, etc. The products are widely used in consumer electronics, security, industrial control, automotive electronics, medical equipment, new energy and many other fields. FuxinSemi can also provide products that meet automotive regulations. The design of automotive products follows APQP, manufacturing management complies with IATF 16949, quality inspection complies with AEC-Q101, and continuous improvement is made to meet customer automotive requirements.
