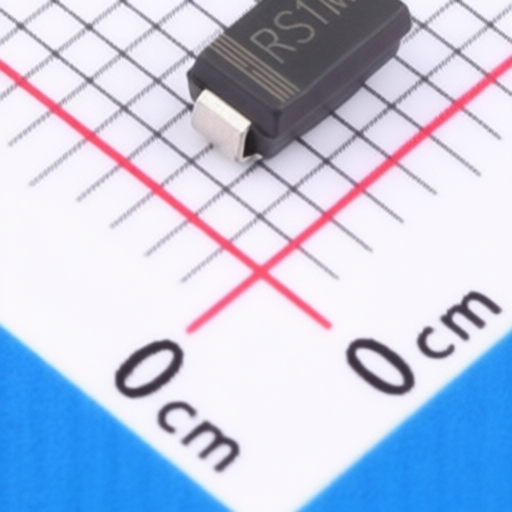

FUXINSEMI RS1MA
Manufacturer:
FUXINSEMI
Asian Brands
Mfr. Part #:
RS1MA
Package:
SMA(DO-214AC)
Customer #:
Key Attributes:
Diode 1kV 1A SMA(DO-214AC)
Description:
30A 500ns 1kV 1.3V@1A 1A SMA(DO-214AC) Single Diodes RoHS
Datasheet:
FUXINSEMI RS1MA
Products Specifications
Manufacturer:
Package:
SMA(DO-214AC)
Non-Repetitive Peak Forward Surge Current:
30A
Reverse Leakage Current (Ir):
5uA@1kV
Reverse Recovery Time (trr):
500ns
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - DC Reverse (Vr) (Max):
1kV
Diode Configuration:
-
Voltage - Forward(Vf@If):
1.3V@1A
Current - Rectified:
1A
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
