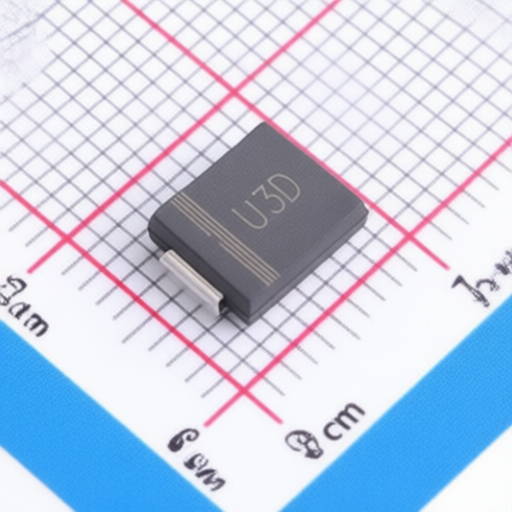

FUXINSEMI STTH4R02SF-FS
Manufacturer:
FUXINSEMI
Asian Brands
Mfr. Part #:
STTH4R02SF-FS
Package:
SMC
Customer #:
Key Attributes:
Diode 200V 4A SMC
Description:
100A 25ns 200V 890mV@4A 4A SMC Single Diodes RoHS
Datasheet:
FUXINSEMI STTH4R02SF-FS
Products Specifications
Manufacturer:
Package:
SMC
Non-Repetitive Peak Forward Surge Current:
100A
Reverse Leakage Current (Ir):
5uA
Reverse Recovery Time (trr):
25ns
Operating Junction Temperature Range:
-55℃~+150℃
Voltage - DC Reverse (Vr) (Max):
200V
Diode Configuration:
-
Voltage - Forward(Vf@If):
890mV@4A
Current - Rectified:
4A
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
