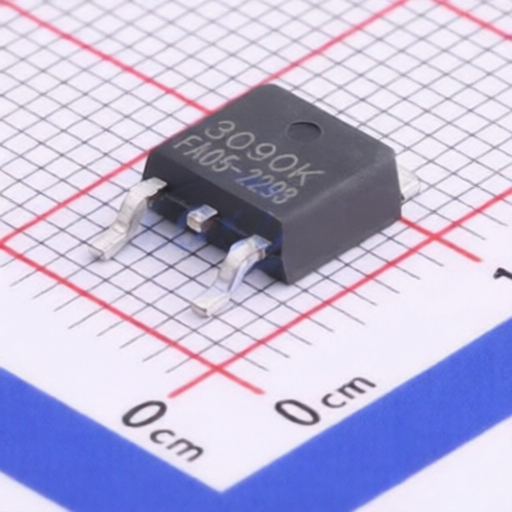

Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
90A
Operating Temperature -:
-55℃~+175℃@(Tj)
RDS(on):
4mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
1.5V
Reverse Transfer Capacitance (Crss@Vds):
240pF@15V
Number:
1 N-channel
Input Capacitance(Ciss):
1.98nF@15V
Pd - Power Dissipation:
84W
Gate Charge(Qg):
45nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
