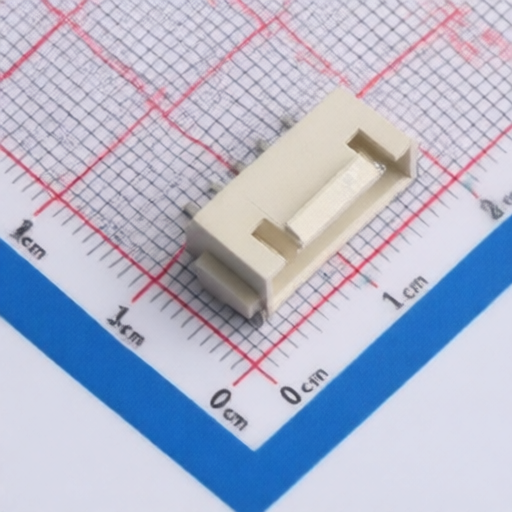

FG XHB-05AWT
Manufacturer:
FG
Asian Brands
Mfr. Part #:
XHB-05AWT
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 5POS 2.5mm
Description:
Connector Header 5 position 2.5mm Pitch 3A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
FG XHB-05AWT
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
7.75mm
Reference Series:
-
Pins Structure:
1x5P
Supplementary Features:
-
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
5
Number of Rows:
1
Z-Height of the Board:
6.75mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
