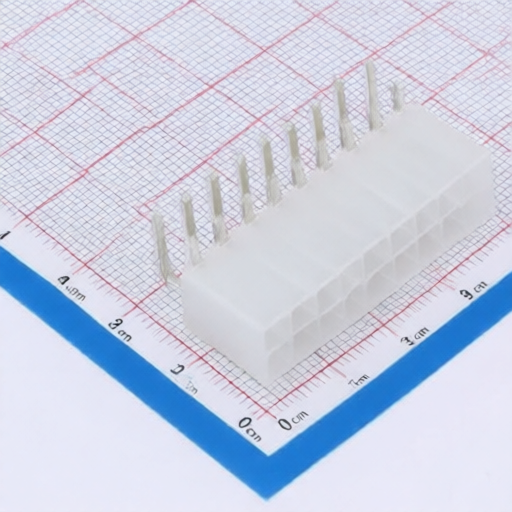

FG 5569-2*9AW
Manufacturer:
FG
Asian Brands
Mfr. Part #:
5569-2*9AW
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 18POS 4.2mm
Description:
Connector Header 18 position 4.2mm Pitch Right Angle
Datasheet:
FG 5569-2*9AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
13.1mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x9P
Contact Material:
Brass;PA66
Pitch:
4.2mm
Voltage Rating (Max):
600V
Number of PINs Per Row:
9
Number of Rows:
2
Z-Height of the Board:
11.4mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
