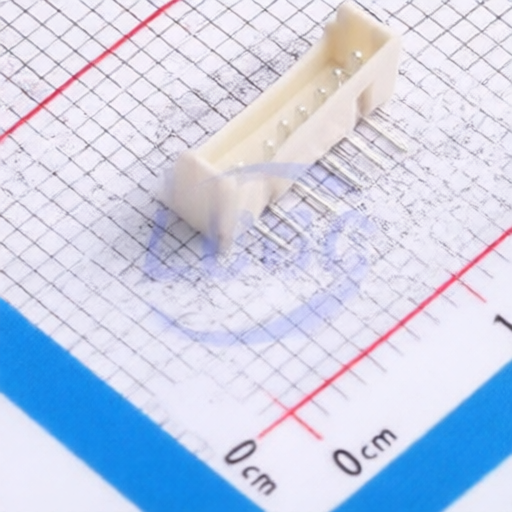

FG 1.25-7AW
Manufacturer:
FG
Asian Brands
Mfr. Part #:
1.25-7AW
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 7POS 1.25mm
Description:
Connector Header 7 position 1.25mm Pitch 1A Right Angle -25℃~+85℃
Datasheet:
FG 1.25-7AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Y-Width of Bottom Edge on Board:
4.6mm
Reference Series:
PicoBlade(MX 1.25)
Pins Structure:
1x7P
Contact Plating:
-
Contact Material:
-
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10.75mm
Z-Height of the Board:
3.25mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
