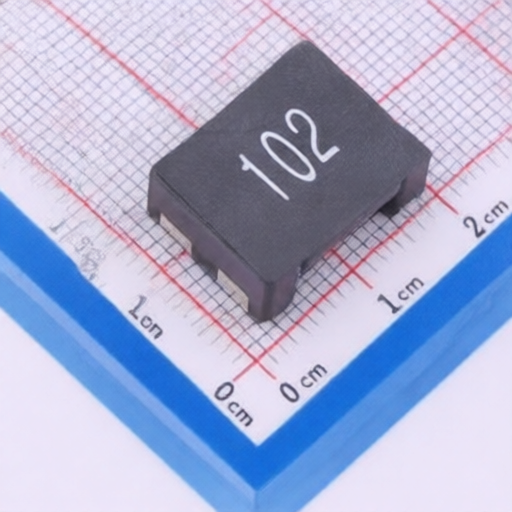

FANGCHENG LCM1513-102
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
LCM1513-102
Package:
SMD-4P,15.5x13mm
Customer #:
Key Attributes:
CMC 10A 2LN 1kΩ SMD
Description:
2Line Common Mode Choke Surface Mount-4P 15.5x13mm 1kΩ@100MHz 10A DCR 8.5mΩ
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,15.5x13mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
DC Resistance(DCR):
8.5mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
