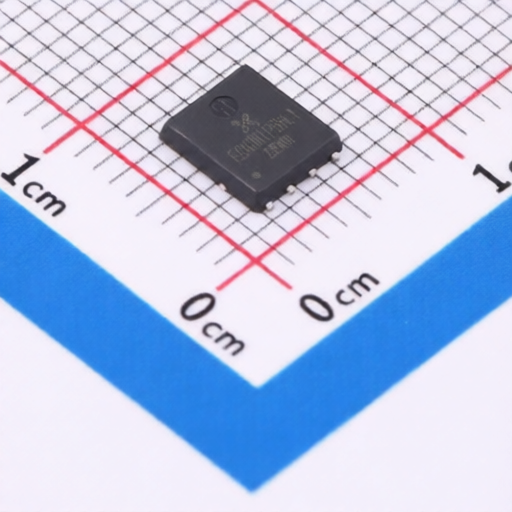

Existar E040N1P5HL1
Manufacturer:
Existar
Asian Brands
Mfr. Part #:
E040N1P5HL1
Package:
PDFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 40V 125A PDFN5x6-8
Description:
N-Channel 40V 125A 136W Surface Mount PDFN5x6-8
Datasheet:
Existar E040N1P5HL1
Products Specifications
Manufacturer:
Package:
PDFN5x6-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
125A
Operating Temperature -:
-55℃~+150℃
RDS(on):
2.1mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
2.4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
950pF
Number:
1 N-channel
Output Capacitance(Coss):
2.045nF
Pd - Power Dissipation:
136W
Input Capacitance(Ciss):
10.53nF
Gate Charge(Qg):
127nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
