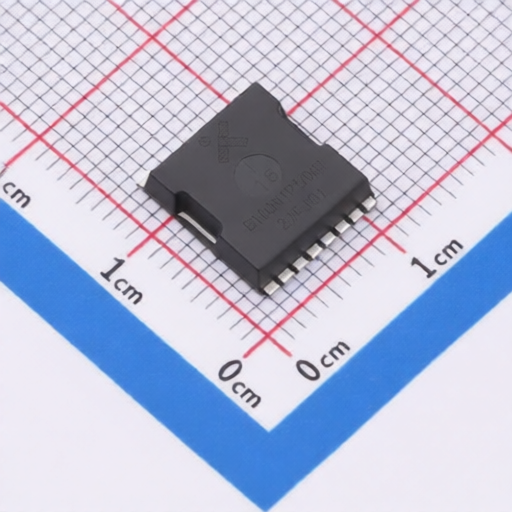

Existar E100N1P5OH1
Manufacturer:
Existar
Asian Brands
Mfr. Part #:
E100N1P5OH1
Package:
TOLL-8
Customer #:
Key Attributes:
MOSFET N-CH 100V 330A TOLL-8
Description:
N-Channel 100V 330A 430W Surface Mount TOLL-8
Datasheet:
Existar E100N1P5OH1
Products Specifications
Manufacturer:
Package:
TOLL-8
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
330A
Operating Temperature -:
-55℃~+150℃
RDS(on):
1.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3.8V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
90pF
Number:
1 N-channel
Output Capacitance(Coss):
2.94nF
Input Capacitance(Ciss):
21.91nF
Pd - Power Dissipation:
430W
Gate Charge(Qg):
362nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
