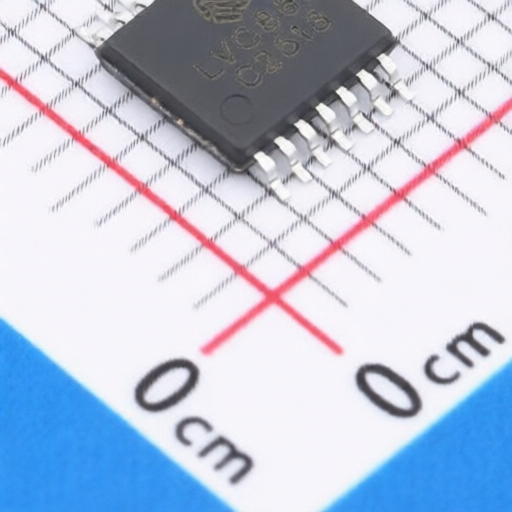

EnergyMath EM74LVC86APW
Manufacturer:
EnergyMath
Asian Brands
Mfr. Part #:
EM74LVC86APW
Package:
TSSOP-14L
Customer #:
Key Attributes:
Quad 2-input EXCLUSIVE gate
Description:
5.5ns@5.5V,15pF 40uA 1.65V~5.5V TSSOP-14L Gates and Inverters RoHS
Datasheet:
EnergyMath EM74LVC86APW
Products Specifications
Manufacturer:
Package:
TSSOP-14L
Logic Family:
74LVC
Input Logic Level - Low:
120mV;700mV;800mV
Operating Temperature:
-40℃~+125℃
Output Logic Level - Low:
450mV;300mV;400mV;550mV
Propagation Delay:
5.5ns@5.5V,15pF
Quiescent Current(Iq):
40uA
Voltage - Supply:
1.65V~5.5V
Current - Output High(IOH):
32mA
Number of Channels:
4;2
Current - Output Low(IOL):
32mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
