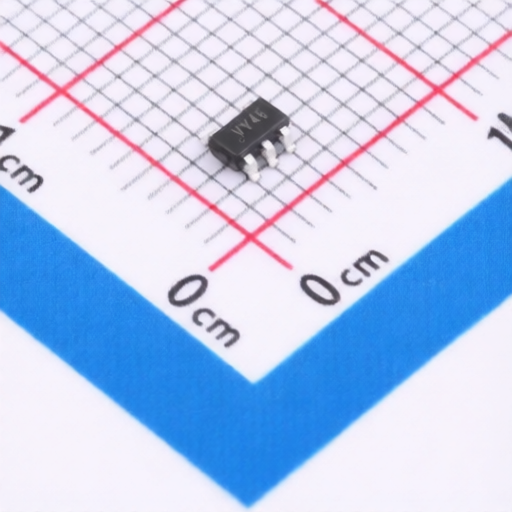

EnergyMath EM74LVC1G132GV
Manufacturer:
EnergyMath
Asian Brands
Mfr. Part #:
EM74LVC1G132GV
Package:
SOT-23-5L
Customer #:
Key Attributes:
Single 2-input NAND gate with Schmitt trigger inputs
Description:
2.9ns@5.5V,50pF 4uA 1.65V~5.5V SOT-23-5L Gates and Inverters RoHS
Datasheet:
EnergyMath EM74LVC1G132GV
Products Specifications
Manufacturer:
Package:
SOT-23-5L
Operating Temperature:
-40℃~+125℃
Logic Family:
74LVC
Output Logic Level - Low:
450mV~700mV;300mV~450mV;400mV~600mV;550mV~800mV
Propagation Delay:
2.9ns@5.5V,50pF
Quiescent Current(Iq):
4uA
Voltage - Supply:
1.65V~5.5V
Current - Output High(IOH):
24mA
Number of Channels:
1;2
Current - Output Low(IOL):
24mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
