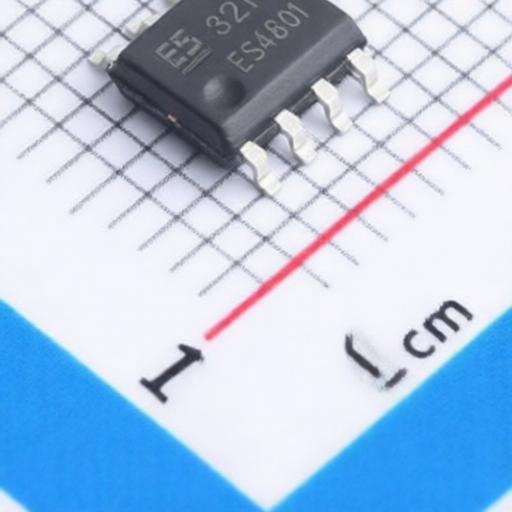

ElecSuper AO4801-ES
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
AO4801-ES
Package:
SOP8
Customer #:
Description:
30V 5.7A 58mΩ@10V 1.1V@250uA 2 P-Channel 3.13W SOP8 Single FETs, MOSFETs RoHS
Datasheet:
ElecSuper AO4801-ES
Products Specifications
Manufacturer:
Package:
SOP8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
5.7A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
58mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
77pF
Number:
2 P-Channel
Output Capacitance(Coss):
115pF
Input Capacitance(Ciss):
954pF
Pd - Power Dissipation:
3.13W
Gate Charge(Qg):
9.4nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
