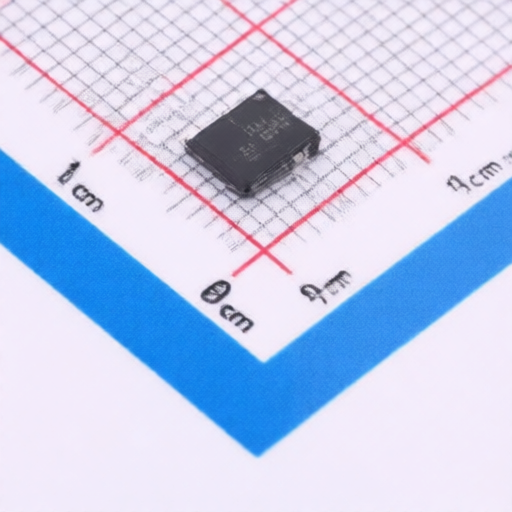

ElecSuper AO4614B(ES)
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
AO4614B(ES)
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 40V 6.8A SOP-8
Description:
N-Channel+P-Channel 40V 6.8A 2W Surface Mount SOP-8
Datasheet:
ElecSuper AO4614B(ES)
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
6.8A;5A
RDS(on):
20mΩ@10V;38mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA;1.55V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
35pF;65pF
Output Capacitance(Coss):
100pF;140pF
Input Capacitance(Ciss):
410pF;660pF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
8.5nC@10V;13.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ElecSuper
1668 Products
Hunan Jingxin Microelectronics Technology Co., Ltd.
(hereinafter referred to as "ElecSuper") was established in 2015, is a high-tech enterprise specializing in the design, development, and production of high-reliability devices and chips. The company focuses on providing full-chip integrated high-performance ESD/TVS design services and discrete devices such as ESD/TVS, MOS, and other components. With a team of experienced R&D professionals, many of whom are returned overseas scholars, ElecSuper has achieved significant technological advancements and holds numerous intellectual property rights, including invention patents and integrated circuit layout registrations. The company has been recognized as a national high-tech enterprise and has received several provincial and municipal science and technology awards. Its products are widely used in automotive electronics, industrial control, and consumer electronics.
