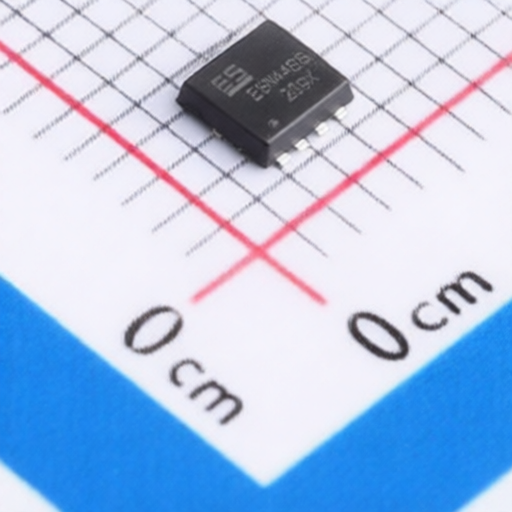

ElecSuper ESN4486
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
ESN4486
Package:
PDFN3x3-8L
Customer #:
Key Attributes:
MOSFET N-CH 100V 10A PDFN3x3-8L
Description:
N-Channel 100V 10A 20W Surface Mount PDFN3x3-8L
Datasheet:
ElecSuper ESN4486
Products Specifications
Manufacturer:
Package:
PDFN3x3-8L
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
10A
Operating Temperature -:
-55℃~+150℃
RDS(on):
82mΩ@10V;90mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.8V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
35pF
Number:
1 N-channel
Output Capacitance(Coss):
50pF
Input Capacitance(Ciss):
815pF
Pd - Power Dissipation:
20W
Gate Charge(Qg):
12nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
