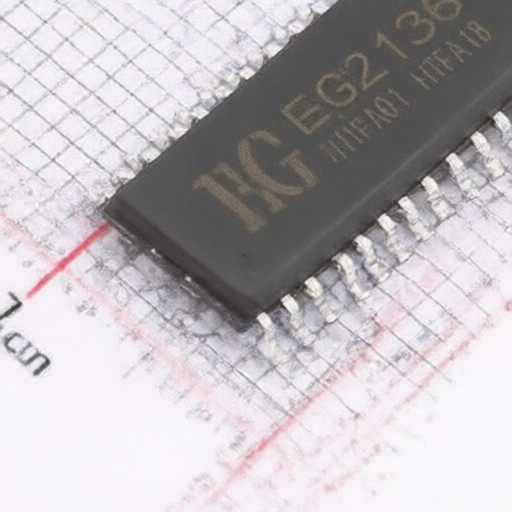

EG Micro EG2136
Manufacturer:
EG Micro
Asian Brands
Mfr. Part #:
EG2136
Package:
SOP-28-300mil
Customer #:
Key Attributes:
Three-phase half-bridge circuit driver chip
Description:
Three Phase Half-Bridge Gate Driver IC MOSFET IGBT SOP-28-300mil
Datasheet:
EG Micro EG2136
Products Specifications
Manufacturer:
Package:
SOP-28-300mil
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Three Phase;Half-Bridge
Features:
Under Voltage Protection;Over Current Protection
Voltage - Supply:
10V~20V
Load Type:
MOSFET;IGBT
Current - Output High(IOH):
200mA
Quiescent Current:
1mA
Current - Output Low(IOL):
350mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 26 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
EG Micro
152 Products
EGmicro Co., Ltd.
(hereinafter referred to as "EG micro") is a specialized integrated circuit design company focusing on the design, production, sales, and service of chips for inverter power supplies, power management, motor control, and MOS drivers. The company boasts a professional IC design team and an experienced R&D team for inverter power supplies and power management, holding proprietary core technologies. Adhering to the business philosophy of "customer-centric, market-oriented, creating more value for society," and embracing a corporate culture of "people-oriented, innovation-driven, teamwork, and integrity," EGmicro has, after years of R&D accumulation, become a leading domestic provider of solutions for inverter power supplies, industrial power supplies, and brushless motor control. Notably, in the field of inverter power supplies, the company offers a comprehensive set of industry-leading solutions. Looking ahead, EGmicro aims to become a top-tier IC design company and an
