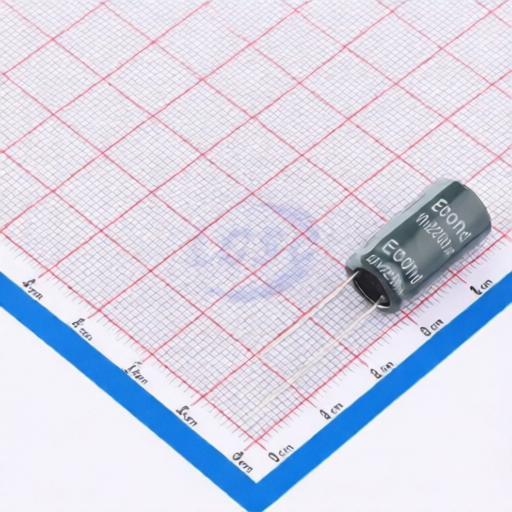

Econd 2200uF10V10x20GF
Manufacturer:
Econd
Asian Brands
Mfr. Part #:
2200uF10V10x20GF
Package:
Through Hole,D10xL20mm
Customer #:
Description:
2200uF 10V 46mΩ 1.4A@100KHz ±20% Through Hole,D10xL20mm Aluminum Electrolytic Capacitors RoHS
Datasheet:
Econd 2200uF10V10x20GF
Products Specifications
Manufacturer:
Package:
Through Hole,D10xL20mm
Lifetime:
3000hrs@105℃
Operating Temperature:
-40℃~+105℃
Capacitance:
2200uF
Height - Seated (Max):
20mm
Voltage Rating:
10V
Pin Spacing:
5mm
Diameter:
10mm
Equivalent Series Resistance(ESR):
46mΩ
Ripple Current:
1.4A@100KHz
Tolerance:
±20%
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
