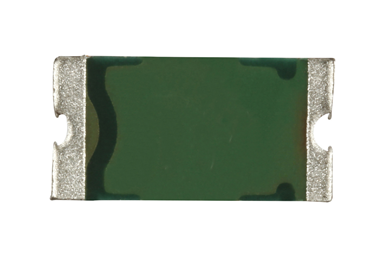

EATON PTSA120624V020
Manufacturer:
EATON
Mfr. Part #:
PTSA120624V020
Package:
1206
Customer #:
Key Attributes:
PTC RESET FUSE 24V 200mA 1206
Description:
Polymeric PTC Resettable Fuse 24V 200mA Surface Mount 1206
Datasheet:
EATON PTSA120624V020
Products Specifications
Category:
Manufacturer:
Package:
1206
Operating Temperature:
-40℃~+85℃
Voltage - Max:
24V
Hold Current:
200mA
Pitch:
-
Current - Max:
40A
Power Dissipation:
600mW
Trip Current:
420mA
Time to Trip(Max):
-
Resistance @ 25℃:
300mΩ
Resistance - Post Trip (R1) (Max):
3.1Ω
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536100000 |
| USHTS | 8536100040 |
| TARIC | 8536109010 |
| CAHTS | 8536100000 |
| BRHTS | 85361000 |
| INHTS | 85361010 |
| MXHTS | 8536.10.01 |
