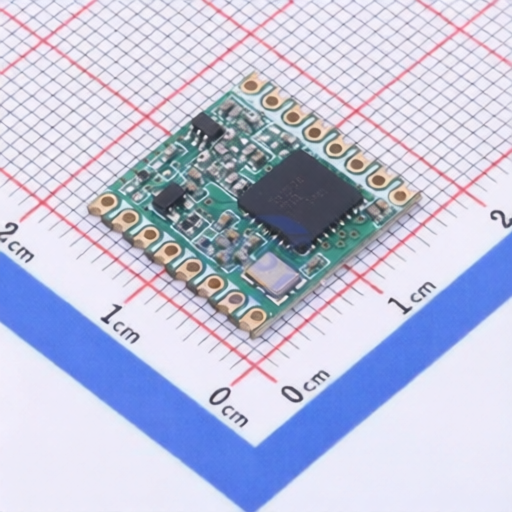

DreamLNK DL-RFM95-868M
Manufacturer:
DreamLNK
Asian Brands
Mfr. Part #:
DL-RFM95-868M
Package:
SMD,16x16mm
Customer #:
Key Attributes:
LoRa Module Low Power Long Range RF Transceiver Module
Description:
868MHz -146dBm 3km SPI SMD,16x16mm RF Transceiver Modules and Modems RoHS
Datasheet:
DreamLNK DL-RFM95-868M
Products Specifications
Manufacturer:
Package:
SMD,16x16mm
Frequency Range:
868MHz
Voltage - Supply:
1.8V~3.7V
Receive Current:
10.8mA
Output Power:
19.5dBm
Antenna Type:
-
Sensitivity:
-146dBm
Communication Distance:
3km
Modulation System:
FSK;GFSK;MSK;GMSK;LoRa;OOK
Interface:
SPI
Current Of Transmitting:
120mA
Operating Temperature:
-20℃~+70℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DreamLNK
166 Products
Shenzhen DreamLNK Technology Co., Ltd.
(hereinafter referred to as "DreamLNK") is a high-tech enterprise specializing in low-power wireless communication technology within the ISM frequency band. With a professional R&D team and extensive RF development experience, the company offers a wide range of IoT RF modules, antennas, and comprehensive intelligent IoT solutions. As a member of the China LoRa Application Alliance (CLAA) and a third-party design company for TI-chipcon, Silicon Labs, and Semtech, DreamLNK focuses on developing and producing various RF modules, including SOC embedded data transmission modules and intelligent IoT modules such as 2.4G modules, UART serial port modules, LoRa modules, FSK modules, ASK modules, and Bluetooth modules. Additionally, the company provides various types of antennas and develops high-performance industrial data transmission radios and customized wireless product solutions.
