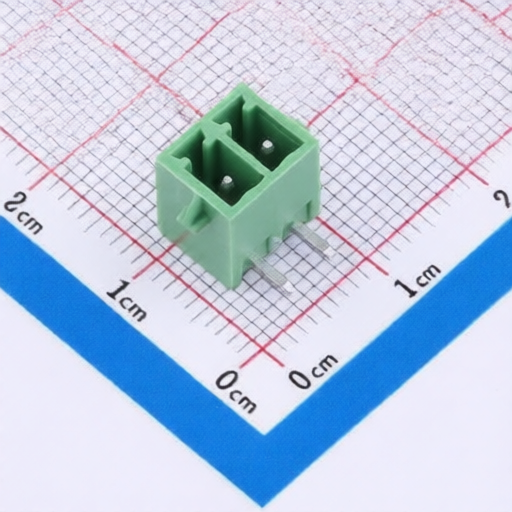

DORABO DB2ERG-3.81-2P-GN
Manufacturer:
DORABO
Asian Brands
Mfr. Part #:
DB2ERG-3.81-2P-GN
Package:
Through Hole,Right Angle,P=3.81mm
Customer #:
Description:
1x2P 300V 3.81mm 1 2 Green -40℃~+105℃ 8A Right-Angle Pin Board Side/Socket - Closed Through Hole,Right Angle,P=3.81mm Wire to Board RoHS
Datasheet:
DORABO DB2ERG-3.81-2P-GN
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.81mm
Wire Gauge - mm2:
-
Wire Gauge - AWG:
-
Number of Positions or Pins:
1x2P
Voltage Rating (Max):
300V
Pitch:
3.81mm
Number of Rows:
1
Number of PINs Per Row:
2
Color:
Green
Operating Temperature:
-40℃~+105℃
Current Rating:
8A
Outlet Direction (Vertical Basis):
-
Connection Type:
-
Mounting Type:
Right-Angle Pin
Connector Type:
Board Side/Socket - Closed
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
