DORABO DB2EK-5.08-2P-OG-S
Manufacturer:
DORABO
Mfr. Part #:
DB2EK-5.08-2P-OG-S
Package:
P=5.08mm
Customer #:
Description:

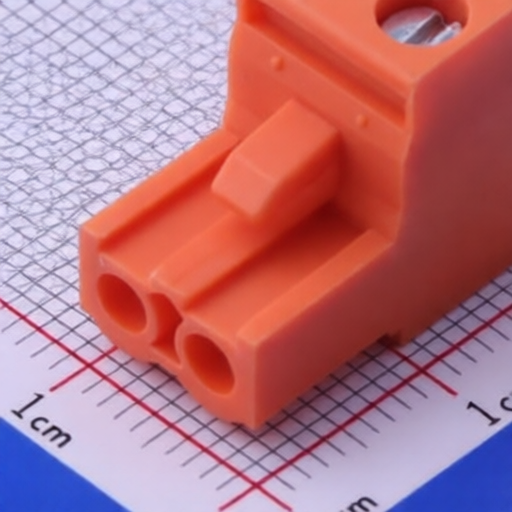

2 Position Plug 5.08mm Pitch
Datasheet:
DORABO DB2EK-5.08-2P-OG-S
Products Specifications
Manufacturer:
Package:
P=5.08mm
Wire Gauge - mm2:
2.5
Number of Pins:
2P
Wire Gauge - AWG:
12~28
Voltage Rating (Max):
630V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
15A
Color:
Orange
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Terminal (M3)
Pitch:
5.08mm
Connector Type:
Male Plug
Number of Rows:
1
Termination Style:
-
Pin Structure:
1x2P
Mounting Type:
-
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
