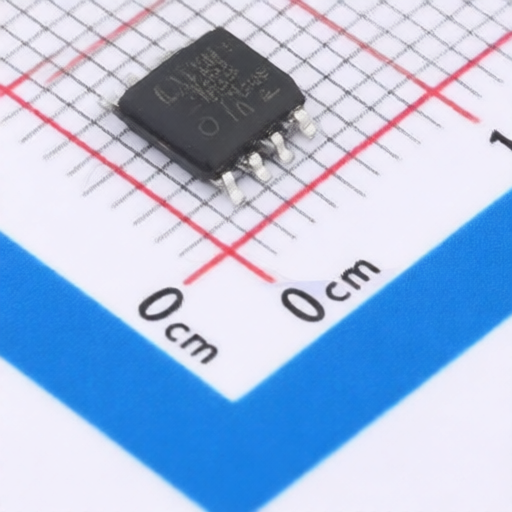

DOINGTER DL1509-12E1
Manufacturer:
DOINGTER
Asian Brands
Mfr. Part #:
DL1509-12E1
Package:
SOP-8
Customer #:
Key Attributes:
150KHz 3A PWM Buck DC/DC Converter
Description:
Buck 150kHz Fixed 12V 3A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
DOINGTER DL1509-12E1
Products Specifications
Category:
Manufacturer:
Package:
SOP-8
Operating Temperature:
-40℃~+125℃
Function:
Buck
Number of Outputs:
1
Frequency - Switching:
150kHz
Topology:
Buck
Output Type:
Fixed
Operating Voltage:
4.5V~40V
Switch tube (built-in/external):
Built-in
Output Voltage:
12V
Output Current:
3A
Quiescent Current:
10mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
