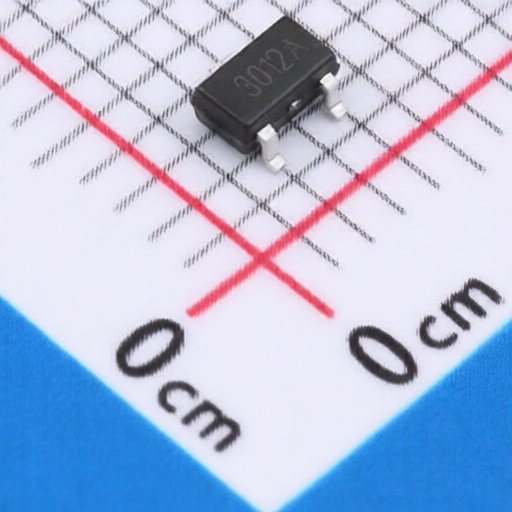

DOINGTER DO3012AA
Manufacturer:
DOINGTER
Asian Brands
Mfr. Part #:
DO3012AA
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET N-CH 30V 9A SOT-23-3
Description:
N-Channel 30V 9A 1.5W Surface Mount SOT-23-3
Datasheet:
DOINGTER DO3012AA
Products Specifications
Manufacturer:
Package:
SOT-23-3
Drain to Source Voltage:
30V
Configuration:
-
Current - Continuous Drain(Id):
9A
RDS(on):
10mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
153pF
Number:
1 N-channel
Output Capacitance(Coss):
183pF
Input Capacitance(Ciss):
1.316nF
Pd - Power Dissipation:
1.5W
Gate Charge(Qg):
13.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
