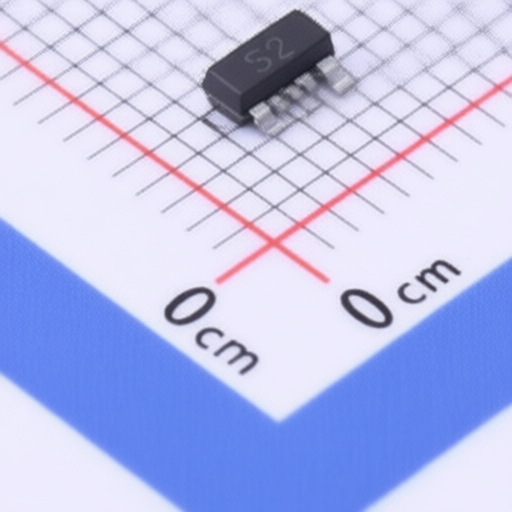

Doeshare DN2302
Manufacturer:
Doeshare
Asian Brands
Mfr. Part #:
DN2302
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET 20V 4.5A SOT-23
Description:
20V 4.5A 1.2W Surface Mount SOT-23
Datasheet:
Doeshare DN2302
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4.5A
RDS(on):
45mΩ@2.5V
Operating Temperature -:
-50℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
42pF
Number:
-
Pd - Power Dissipation:
1.2W
Input Capacitance(Ciss):
280pF@10V
Gate Charge(Qg):
4.7nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
