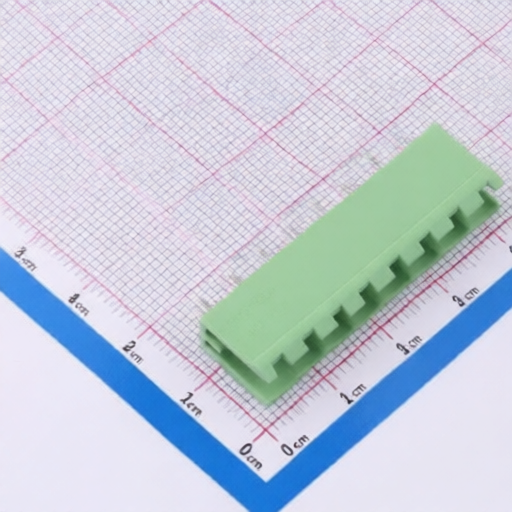

DLL 2EDG-5.08-8AH

Name: DLL 2EDG-5.08-8AH
Brand: DLL

Manufacturer: DLL Asian Brands

Mfr. Part #: 2EDG-5.08-8AH

Package: Through Hole,P=5.08mm

Customer #:

Key Attributes: 5.08mm Pitch Wire To Board Connector

Description: 15A 14~28 Green 300V -40℃~+105℃ 5.08mm 1 8 1x8P Straight Pin Through Hole,P=5.08mm Headers, Plugs and Sockets RoHS

Products Specifications

Category:

Connectors, Interconnects/Terminal Blocks/Headers, Plugs and Sockets

Manufacturer:

DLL

Package:

Through Hole,P=5.08mm

Wire Gauge - mm2:

Current Rating:

15A

Number of Pins:

Wire Gauge - AWG:

14~28

Color:

Green

Voltage Rating (Max):

300V

Operating Temperature:

-40℃~+105℃

Pitch:

5.08mm

Connector Type:

Number of Rows:

Number of PINs Per Row:

Pin Structure:

1x8P

Mounting Type:

Straight Pin

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	150
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

Get Best Price

Inquiry

Negotiate

Payment

Shipping

DLL

794 Products

Asian Brand

DLL, established in 1989 and located in Yueqing City, Wenzhou, is a modern high-tech enterprise specializing in the development and design of connectors, interconnects, and electronic components. The main products include wire-to-board connectors, wire-to-wire connectors, and board-to-board connectors.
