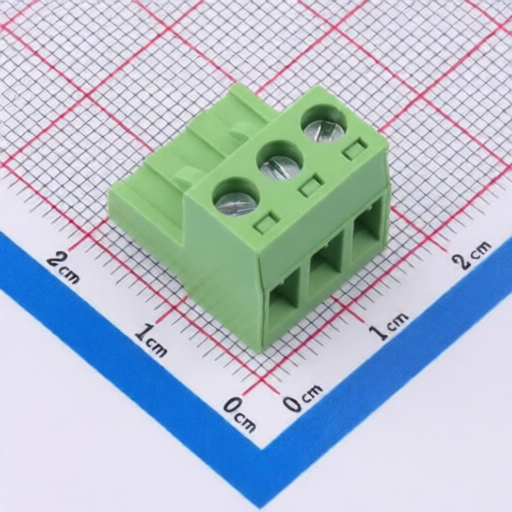

DLL 2EDG-5.08-3Y

Name: DLL 2EDG-5.08-3Y
Brand: DLL

Manufacturer: DLL Asian Brands

Mfr. Part #: 2EDG-5.08-3Y

Package: P=5.08mm

Customer #:

Key Attributes: 5.08mm Pitch Wire To Board Connector

Description: 14~28 300V -40℃~+105℃ 3 15A Green 5.08mm 1 Screw 1x3P Straight Pin P=5.08mm Headers, Plugs and Sockets RoHS

Products Specifications

Category:

Connectors, Interconnects/Terminal Blocks/Headers, Plugs and Sockets

Manufacturer:

DLL

Package:

P=5.08mm

Wire Gauge - mm2:

Wire Gauge - AWG:

14~28

Number of Pins:

Voltage Rating (Max):

300V

Operating Temperature:

-40℃~+105℃

Number of PINs Per Row:

Current Rating:

15A

Color:

Green

Outlet Direction (Vertical Basis):

Top Entry

Connection Type:

Screw Connection (M2.5)

Pitch:

5.08mm

Connector Type:

Number of Rows:

Termination Style:

Screw

Pin Structure:

1x3P

Mounting Type:

Straight Pin

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	220
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
