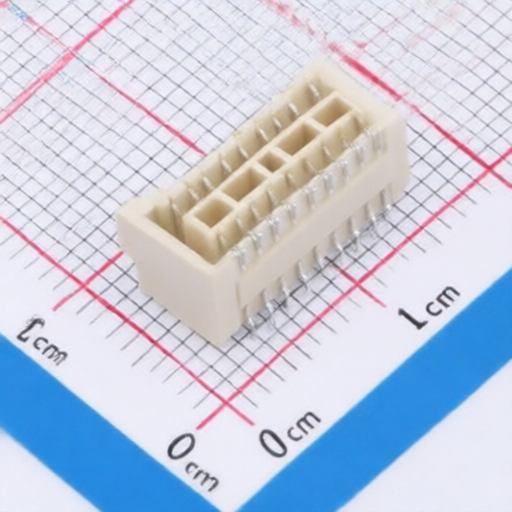

DLL GHD-18AWB

Name: DLL GHD-18AWB
Brand: DLL

Manufacturer: DLL

Mfr. Part #: GHD-18AWB

Package: SMD,P=1.25mm,Surface Mount,Right Angle

Customer #:

Description: Connector Header 18 position 1.25mm Pitch 1.25A Surface Mount, Right Angle -40℃~+105℃

Datasheet: DLL GHD-18AWB

Products Specifications

Manufacturer:

DLL

Package:

SMD,P=1.25mm,Surface Mount,Right Angle

Flame Retardant Rating:

UL94V-0

Reference Series:

GHD

Pins Structure:

2x9P

Supplementary Features:

Auxiliary Solder Pin

Contact Plating:

Tin

Contact Material:

Phosphor Bronze;LCP

Pitch:

1.25mm

Voltage Rating (Max):

50V

Number of PINs Per Row:

Number of Rows:

Mounting Type:

Surface Mount, Right Angle

Operating Temperature:

-40℃~+105℃

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
