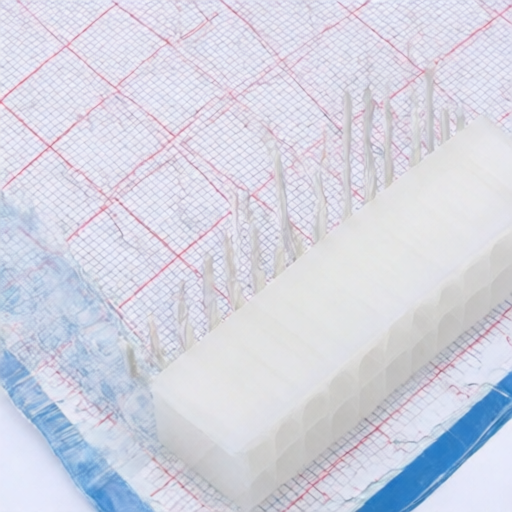

DLL DLL-5569-20AW
Manufacturer:
DLL
Mfr. Part #:
DLL-5569-20AW
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Description:
Connector Header 20 position 4.2mm Pitch 9A Right Angle -35℃~+105℃
Datasheet:
DLL DLL-5569-20AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Flame Retardant Rating:
UL94V-0
Reference Series:
Mini-Fit(MX 4.2)
Pins Structure:
2x10P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
10
Number of Rows:
2
Row Spacing:
4.2mm
Operating Temperature:
-35℃~+105℃
Mounting Type:
Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DLL
794 Products
DLL, established in 1989 and located in Yueqing City, Wenzhou, is a modern high-tech enterprise specializing in the development and design of connectors, interconnects, and electronic components. The main products include wire-to-board connectors, wire-to-wire connectors, and board-to-board connectors.
