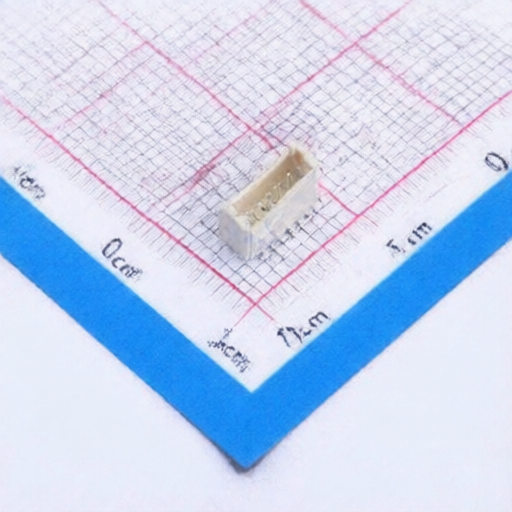

DLL SH-14AB
Manufacturer:
DLL
Mfr. Part #:
SH-14AB
Package:
SMD,P=1mm
Customer #:
Description:
Connector Header 14 position 1mm Pitch 1A Surface Mount,Vertical -35℃~+105℃
Datasheet:
DLL SH-14AB
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Flame Retardant Rating:
UL94V-0
Reference Series:
SH
Pins Structure:
1x14P
Supplementary Features:
Auxiliary Solder Pin
Contact Plating:
Tin
Pitch:
1mm
Contact Material:
Phosphor Bronze;LCP
Voltage Rating (Max):
50V
Number of PINs Per Row:
14
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Operating Temperature:
-25℃~+85℃
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DLL
794 Products
DLL, established in 1989 and located in Yueqing City, Wenzhou, is a modern high-tech enterprise specializing in the development and design of connectors, interconnects, and electronic components. The main products include wire-to-board connectors, wire-to-wire connectors, and board-to-board connectors.
