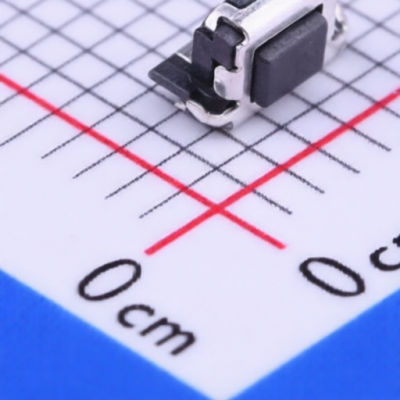

Diptronics TCF2QR
Manufacturer:
Diptronics
Asian Brands
Mfr. Part #:
TCF2QR
Package:
SMD,4.5x2.9mm
Customer #:
Key Attributes:
SWITCH TACTILE SPST SMD R/A
Description:
Tactile Switch SPST 1.7mm 4.5mm x 2.9mm Surface Mount, Right Angle
Products Specifications
Category:
Manufacturer:
Package:
SMD,4.5x2.9mm
Voltage Rating:
15V
Switching Life:
200,000 Cycles
Operating Temperature:
-40℃~+85℃
Width:
2.9mm
Installation Method:
Surface Mount, Right Angle
PressForce:
1.6N
Termination Style:
SMD(SMT) Tab
Actuator Style:
Rectangular Button
With Lamp:
No
Length:
4.5mm
Circuit:
SPST
Height:
1.7mm
Contact Current:
20mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
