DEGSON 15EDGKDM-3.5-03P-14-00A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
15EDGKDM-3.5-03P-14-00A(H)
Package:
P=3.5mm
Customer #:
Description:

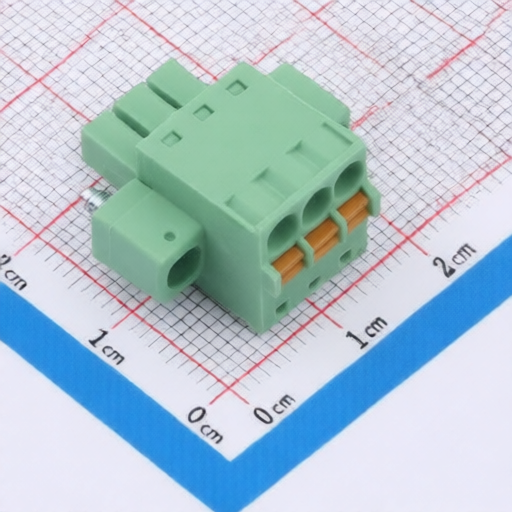

0.2~1.5 16~28 250V -40℃~+105℃ 3 12A Green 3.5mm Male Plug 1 Screw 1x3P P=3.5mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON 15EDGKDM-3.5-03P-14-00A(H)
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
0.2~1.5
Wire Gauge - AWG:
16~28
Number of Pins:
3P
Voltage Rating (Max):
250V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
3
Current Rating:
12A
Color:
Green
Connection Type:
Screw Connection (M2.5)
Pitch:
3.5mm
Connector Type:
Male Plug
Number of Rows:
1
Termination Style:
Screw
Pin Structure:
1x3P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
