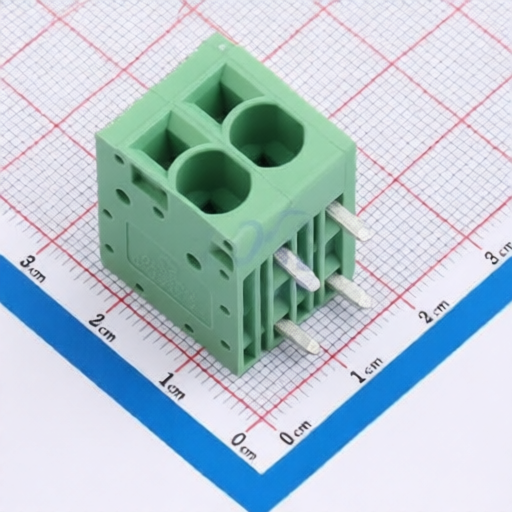

DEGSON DG271R-7.5-02P-14-100A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
DG271R-7.5-02P-14-100A(H)
Package:
Through Hole,P=7.5mm
Customer #:
Description:
0.2~6 8~24 300V -40℃~+105℃ 2 40A Green 7.5mm Board Side/Socket - Closed 1 Hinged (Snap On) Right-Angle Pin 1x2P Through Hole,P=7.5mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON DG271R-7.5-02P-14-100A(H)
Products Specifications
Manufacturer:
Package:
Through Hole,P=7.5mm
Wire Gauge - mm2:
0.2~6
Wire Gauge - AWG:
8~24
Number of Pins:
2P
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
40A
Color:
Green
Pitch:
7.5mm
Connector Type:
Board Side/Socket - Closed
Number of Rows:
1
Termination Style:
Hinged (Snap On)
Mounting Type:
Right-Angle Pin
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 480 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
