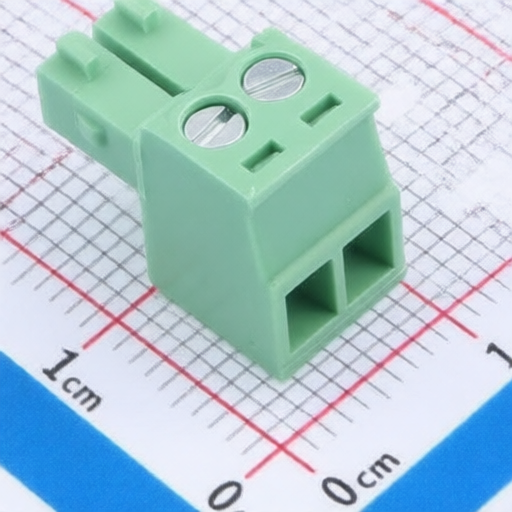

DEGSON 15EDGK-3.5-02P-14-00A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
15EDGK-3.5-02P-14-00A(H)
Package:
P=3.5mm
Customer #:
Description:
0.5~1.5 16~28 250V -40℃~+105℃ 2 7A Green 3.5mm Male Plug 1 Hinged (Snap On) 1x2P P=3.5mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON 15EDGK-3.5-02P-14-00A(H)
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
0.5~1.5
Wire Gauge - AWG:
16~28
Number of Pins:
2P
Voltage Rating (Max):
250V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
7A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Pitch:
3.5mm
Connector Type:
Male Plug
Number of Rows:
1
Termination Style:
Hinged (Snap On)
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
