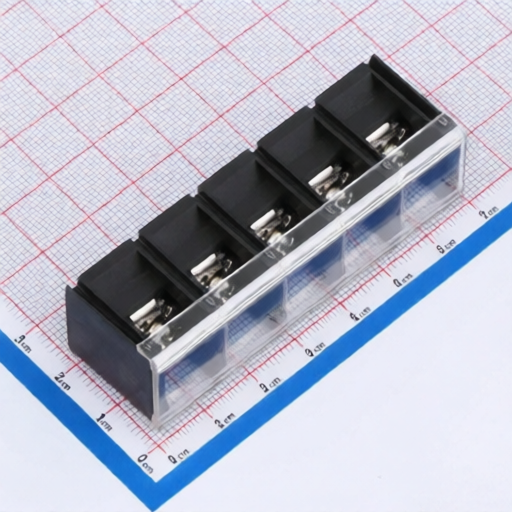

DEGSON DG78C-B-05P-13-00A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
DG78C-B-05P-13-00A(H)
Package:
Through Hole,P=13mm
Customer #:
Description:
40A -40℃~+105℃ 1x5P Mid Terminal 10~18 13mm 1 5 Through Hole,P=13mm Barrier Blocks RoHS
Datasheet:
DEGSON DG78C-B-05P-13-00A(H)
Products Specifications
Manufacturer:
Package:
Through Hole,P=13mm
Current Rating:
40A
Operating Temperature:
-40℃~+105℃
Number of Positions or Pins:
1x5P
Number of Pins:
5P
Screw Specification:
M4
Pin Location:
Mid Terminal
Wire Gauge - AWG:
10~18
voltage:
600V
Pitch:
13mm
Number of Rows:
1
Number of PINs Per Row:
5
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 105 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
