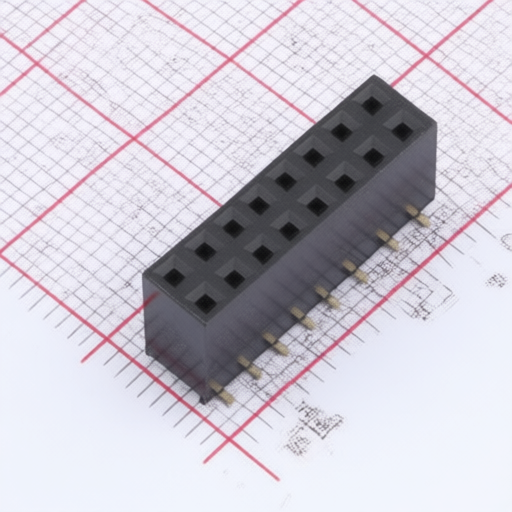

DEALON DW254S-22-16-85
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
DW254S-22-16-85
Package:
SMD,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 16POS 2.54mm DUAL ROW SMD
Description:
Female Header 16 Position 2.54mm Pitch Dual Row Surface Mount
Datasheet:
DEALON DW254S-22-16-85
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
16P
Holes Structure:
2x8P
Holes Direction:
Top
Current Rating:
3A
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 390 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
