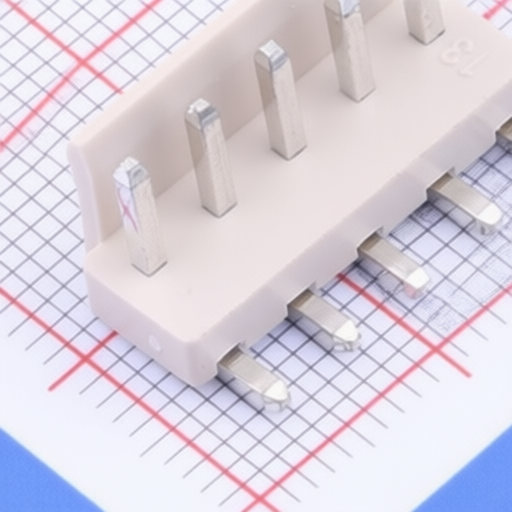

DEALON VH-5AW

Name: DEALON VH-5AW
Brand: DEALON

Manufacturer: DEALON Asian Brands

Mfr. Part #: VH-5AW

Package: Through Hole,Right Angle,P=3.96mm

Customer #:

Key Attributes: CONN HEADER TH R/A 5POS 3.96mm

Description: Connector Header 5 position 3.96mm Pitch 7A Right Angle -25℃~+85℃

Datasheet: DEALON VH-5AW

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

DEALON

Package:

Through Hole,Right Angle,P=3.96mm

Y-Width of Bottom Edge on Board:

14.1mm

Reference Series:

Pins Structure:

1x5P

Contact Plating:

Contact Material:

-;-

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

Supplementary Features:

Pitch:

3.96mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

19.8mm

Z-Height of the Board:

8.5mm

Row Spacing:

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

DEALON

2386 Products

Asian Brand

DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors. The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
