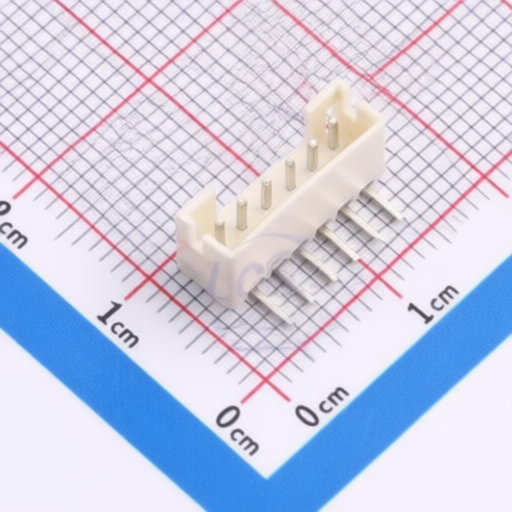

DEALON PH-6AW
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
PH-6AW
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 6POS 2mm
Description:
Connector Header 6 position 2mm Pitch Right Angle -25℃~+85℃
Datasheet:
DEALON PH-6AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
6.15mm
Reference Series:
PH
Pins Structure:
1x6P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
14mm
Z-Height of the Board:
4.7mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
