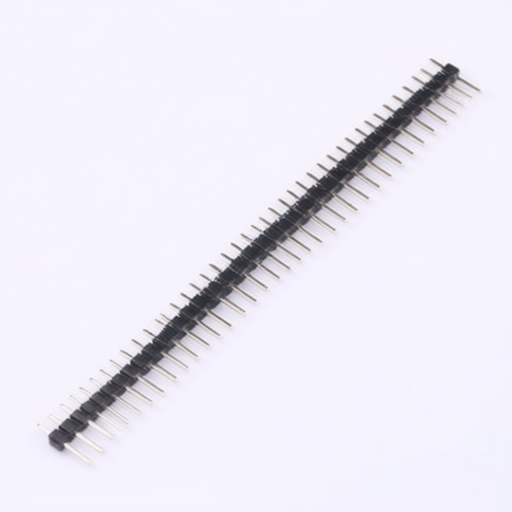

DEALON DZ254R-11-40-63
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
DZ254R-11-40-63
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 40POS 2.54mm SINGLE ROW TH
Description:
Pin Header 40 Position 2.54mm Pitch Single Row Through Hole
Datasheet:
DEALON DZ254R-11-40-63
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Pins Structure:
1x40P
Number of Pins:
40P
Contact Plating:
Gold
Contact Material:
Brass
Pitch:
2.54mm
Insulation Height:
2.54mm
Length of Mating Pin:
6mm
Length of End Connection Pin:
3mm
Current Rating-Signal:
3A
Number of Rows:
1
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
