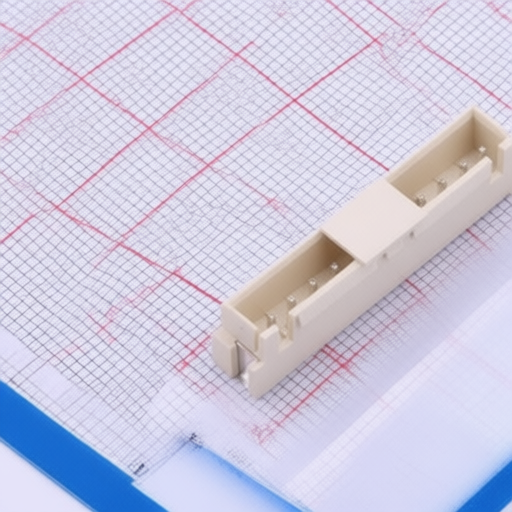

DEALON L254XHB-11PS
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
L254XHB-11PS
Package:
SMD,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 11POS 2.54mm
Description:
Connector Header 11 position 2.54mm Pitch Surface Mount,Vertical
Datasheet:
DEALON L254XHB-11PS
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm
Y-Width of Bottom Edge on Board:
5.95mm
Pins Structure:
1x11P
Pitch:
2.54mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
11
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
30.8mm
Operating Temperature:
-25℃~+105℃
Z-Height of the Board:
8mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
