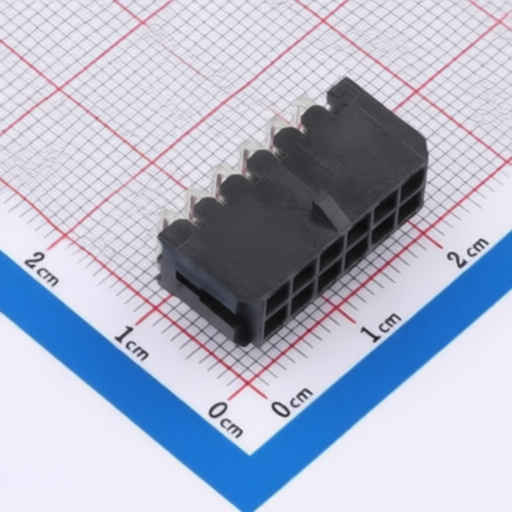

DEALON X3020WR-12A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
X3020WR-12A
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 12POS 3mm
Description:
Connector Header 12 position 3mm Pitch Right Angle
Datasheet:
DEALON X3020WR-12A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
10mm
Pins Structure:
2x6P
Pitch:
3mm
Voltage Rating (Max):
600V
Number of PINs Per Row:
6
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
21mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
8.8mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
