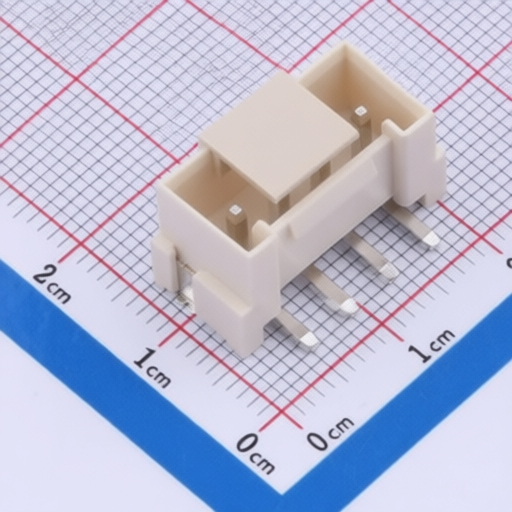

DEALON L396VH-04PS
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
L396VH-04PS
Package:
SMD,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 3.96mm
Description:
Connector Header 4 position 3.96mm Pitch 7A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=3.96mm
Y-Width of Bottom Edge on Board:
12.3mm
Reference Series:
VH
Pins Structure:
1x4P
Contact Plating:
-
Contact Material:
-;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
3.96mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
19.8mm
Row Spacing:
-
Z-Height of the Board:
11.75mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
