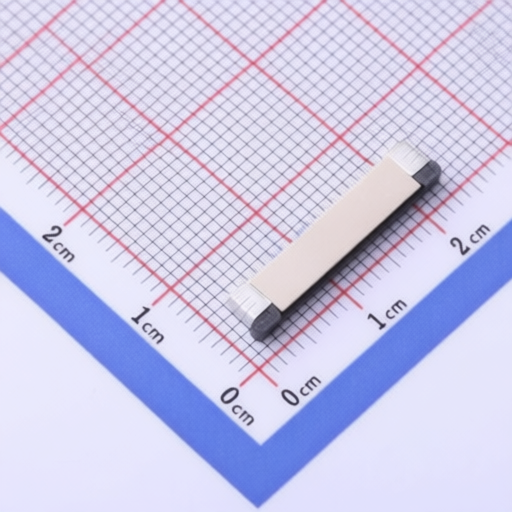

DEALON FC05-S32DCU-00

DEALON FC05-S32DCU-00

Name: DEALON FC05-S32DCU-00
Brand: DEALON

Manufacturer: DEALON Asian Brands

Mfr. Part #: FC05-S32DCU-00

Package: SMD,P=0.5mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN FFC FPC 32POS 0.5mm TOP CNT SMD R/A

Description: FFC/FPC Connector 32 Position 0.5mm Pitch Top Contact Surface Mount, Right Angle -25℃~+85℃

Datasheet: DEALON FC05-S32DCU-00

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

DEALON

Package:

SMD,P=0.5mm,Surface Mount,Right Angle

Locking Feature:

Slide Lock

Operating Temperature:

-25℃~+85℃

Number of Contacts:

32P

Pitch:

0.5mm

Voltage Rating (Max):

50V

Contact Type:

Top Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Plating:

Contact Material:

Copper

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
