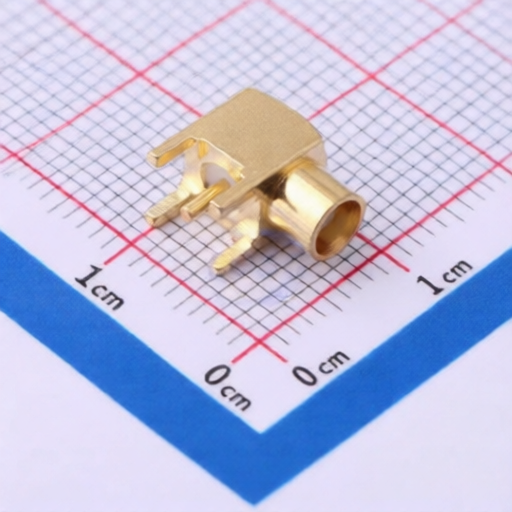

DEALON DL-MCX-KWE
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
DL-MCX-KWE
Package:
Through Hole
Customer #:
Description:
1 Inner Bore MCX Board Side Elbow 6GHz 50Ω 4.5mm Through Hole Coaxial Connector (RF) Assemblies RoHS
Products Specifications
Manufacturer:
Package:
Through Hole
Number of Ports:
1
Interface:
Inner Bore
RF Series:
MCX
Connector Type:
Board Side
Style:
Elbow
Rated voltage:
250V
Frequency:
6GHz
Impedance:
50Ω
Interface Diameter:
4.5mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
