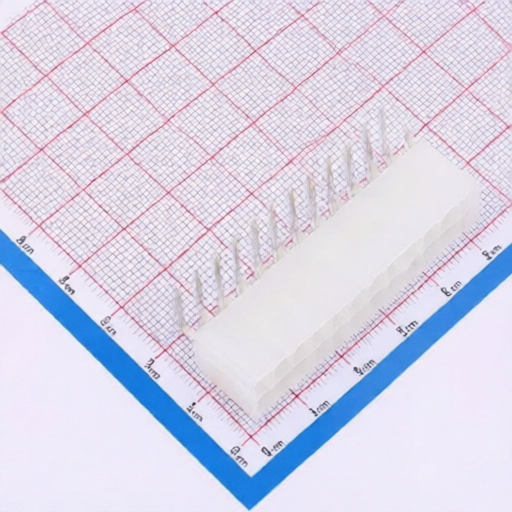

D-CHAIN PA2412420100-128DMD
Manufacturer:
D-CHAIN
Asian Brands
Mfr. Part #:
PA2412420100-128DMD
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 24POS 4.2mm
Description:
2x12P PA66 4.2mm 250V 12 2 5.5mm -25℃~+85℃ Right Angle Through Hole,Right Angle,P=4.2mm Headers, Male Pins RoHS
Datasheet:
D-CHAIN PA2412420100-128DMD
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
12.8mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x12P
Contact Material:
PA66
Pitch:
4.2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
12
Number of Rows:
2
Z-Height of the Board:
11.4mm
Row Spacing:
5.5mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
