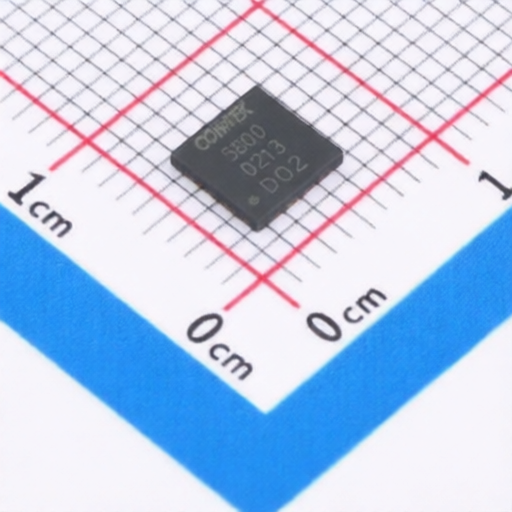

CONNTEK KTM5800
Manufacturer:
CONNTEK
Asian Brands
Mfr. Part #:
KTM5800
Package:
QFN-32(5x5)
Customer #:
Key Attributes:
30-bit absolute angle interpolator, supporting up to 4096 pole pairs and one-key nonlinear self-calibration, integrating dual 16-bit 2M SAR ADCs
Description:
QFN-32(5x5) Angle, Linear Position Measuring RoHS
Datasheet:
CONNTEK KTM5800
Products Specifications
Manufacturer:
Package:
QFN-32(5x5)
Number of Conjugate Points of UVW:
256
Current - Supply:
32mA
Out Type:
SPI;ABZ;UVW;PWM
Number of ABZ Pulses:
65536
Voltage - Supply:
3V~5.5V
Rotate Speed:
180000rpm
Operating Temperature:
-40℃~+125℃
Minimum Field:
10mT
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CONNTEK
165 Products
Quanzhou CONNTEK Microelectronics Technology Co., Ltd.
(hereinafter referred to as "CONNTEK") was established in 2016. It is a high-tech enterprise focusing on the R&D, production, and sales of sensor chips. The company's main products include magnetic angle detection chips, switch position detection chips, signal conditioning chips, and fluxgate sensor residual current detection chips, widely used in consumer electronics, industry 4.0, intelligent transportation, and other applications. CONNTEK has core patents, rich IP accumulation, and unique patent technology portfolios. The products can meet a series of needs such as Hall magnetic sensors, AMR/GMR/TMR magnetic sensors, MEMS pressure sensors, magnetic current sensors, capacitive sensors, high-speed and high-precision AD/DA, and sensor signal SoCs for Internet of Things applications. Additionally, CONNTEK offers comprehensive sensor product design services, leveraging deep industry experience and skilled service teams to streamline
