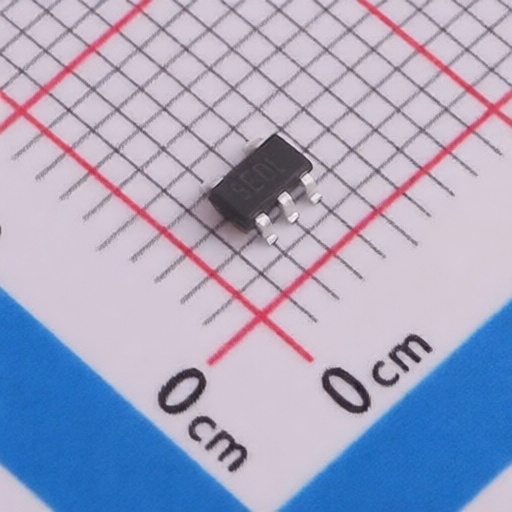

CONNTEK KTA333-ST5
Manufacturer:
CONNTEK
Asian Brands
Mfr. Part #:
KTA333-ST5
Package:
SOT-23-5
Customer #:
Key Attributes:
Zero-drift, micropower, CMOS operational amplifier
Description:
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
Datasheet:
CONNTEK KTA333-ST5
Products Specifications
Manufacturer:
Package:
SOT-23-5
Vos - Input Offset Voltage:
2uV
Ib - Input Bias Current:
100pA
Slew Rate:
160V/ms
Common Mode Rejection Ratio(CMRR):
120dB
Quiescent Current(Iq):
17uA
Operating Temperature:
-40℃~+125℃
Output Current:
17mA
Voltage - Supply:
1.8V~5.5V;-2.75V~-900mV;900mV~2.75V
Gain Bandwidth Product:
350kHz
Input Offset Voltage Drift(Vos TC):
20nV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
1
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
120pA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
