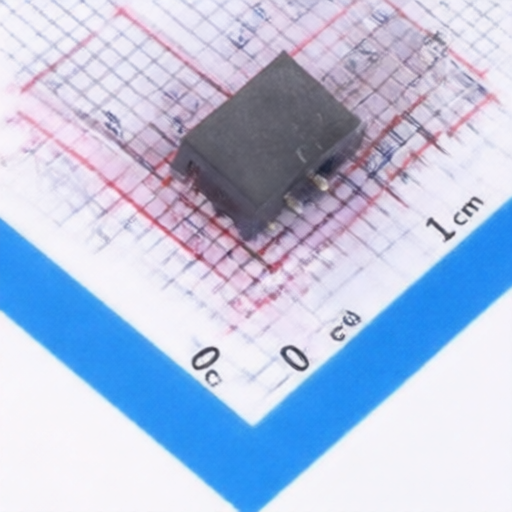

CONNFLY Elec DS1026-09-2x3S8BSSRS
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1026-09-2x3S8BSSRS
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN SOCKET 2mm DUAL ROW SMD
Description:
Female Header 2mm Pitch Dual Row Surface Mount
Datasheet:
CONNFLY Elec DS1026-09-2x3S8BSSRS
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Pitch:
2mm
Row Spacing:
2mm
Number of Rows:
2
Number of Pins:
6P
Voltage Rating (Max):
500V
Contact Plating:
Gold
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x3P
Holes Direction:
Top
Current Rating:
1.5A
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
