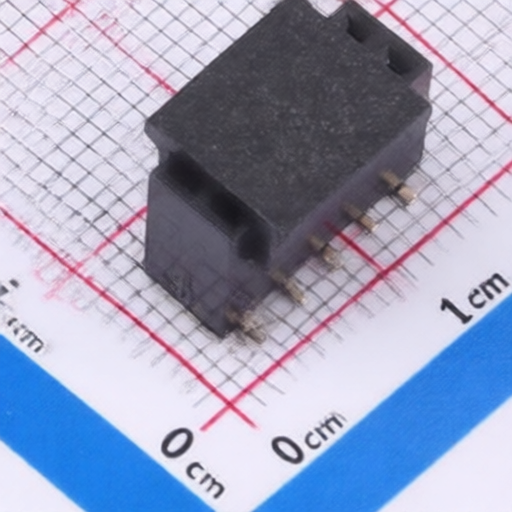

CONNFLY Elec DS1023-15-2x5B8SRX1
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1023-15-2x5B8SRX1
Package:
SMD,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 10POS 2.54mm DUAL ROW SMD
Description:
2.54mm 2.54mm 2 600V 10P -40℃~+105℃ 2x5P Top 3A Surface Mount,Vertical Square Hole SMD,P=2.54mm Headers, Receptacles, Female Sockets RoHS
Datasheet:
CONNFLY Elec DS1023-15-2x5B8SRX1
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Voltage Rating (Max):
600V
Number of Pins:
10P
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x5P
Holes Direction:
Top
Current Rating:
3A
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 350 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CONNFLY Elec
1183 Products
Connfly Electronic Co., Ltd.
(hereinafter referred to as "Connfly" or "CONNFLY Elec") was founded in 2006, mainly engaged in the R&D, production, and sales of connectors and wire products in various fields. The company has passed ISO9001 quality management system certification, ISO14001 environmental system certification, OHSAS18001 occupational health and safety system certification, and IATF16949 automotive quality management system certification. The products have passed certifications such as CE, FCC, and UL. The company's products include pins, buses, connectors, switches, FPC, FFC, various electronic wires, network sockets, wafers, wiring wires, etc. The products produced by the company meet the requirements of Rohs2.0 and the REACH environmental protection directive. Products are widely used in new energy, 5G networks, automotive electronics, heavy industrial waterproofing equipment, and medical fields.
