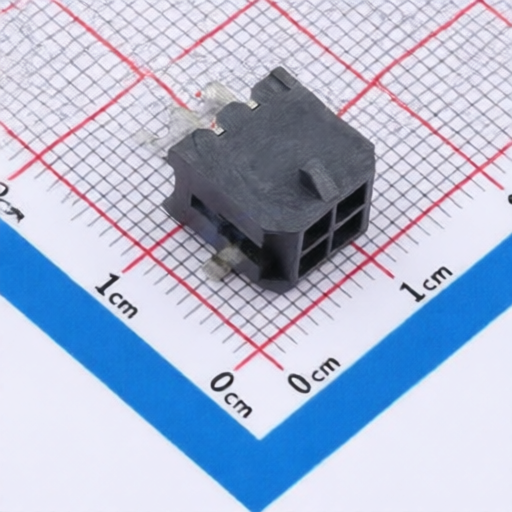

CONNFLY Elec DS1073-07-2x2MR6BR
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1073-07-2x2MR6BR
Package:
SMD,P=3mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
3.0mm Micro ATX Connector
Description:
Tin Copper alloy 3mm 12 2 3mm -25℃~+85℃ SMD,P=3mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
CONNFLY Elec DS1073-07-2x2MR6BR
Products Specifications
Manufacturer:
Package:
SMD,P=3mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
15.3mm
Contact Plating:
Tin
Contact Material:
Copper alloy
Pitch:
3mm
Number of PINs Per Row:
12
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
9.65mm
Row Spacing:
3mm
Z-Height of the Board:
8.75mm
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
