CONNFLY Elec DS1021-2x4SF11-B
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1021-2x4SF11-B
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 8POS 2.54mm DUAL ROW TH
Description:

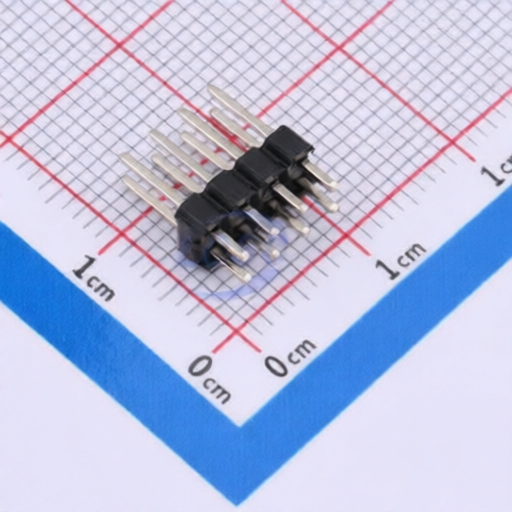

Pin Header 8 Position 2.54mm Pitch Dual Row Through Hole
Datasheet:
CONNFLY Elec DS1021-2x4SF11-B
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pins Structure:
2x4P
Number of Pins:
8P
Contact Plating:
Gold
Contact Material:
Copper alloy
Pitch:
2.54mm
Voltage Rating (Max):
250V
Current Rating-Signal:
3A
Number of Rows:
2
Operating Temperature:
-40℃~+105℃
Row Spacing:
2.54mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
